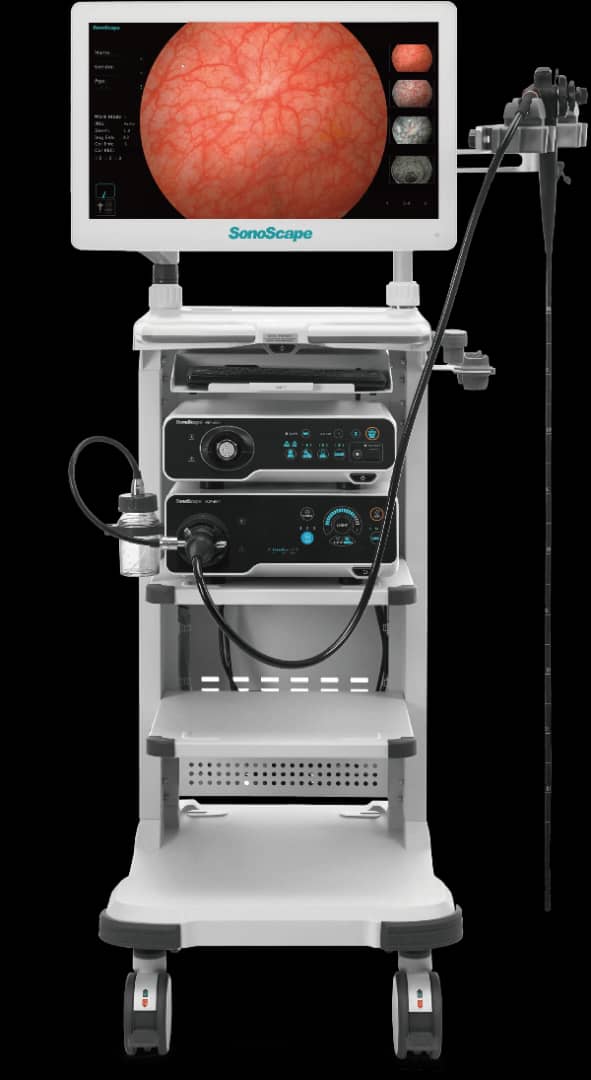

Endoscopy Video Processor SV-M2K30

The Endoscopy video processor SV-M2K30 offers advanced imaging capabilities for precise medical diagnostics. It delivers high-resolution visuals, supporting both HD and 4K imaging for enhanced clarity during endoscopic procedures.

Characteristics
Feature
Details
Applications
Endoscopy
Options
Integrated LED light source
Type of Imaging
HD imaging, 4K imaging
Imaging System and Technology
3CMOS Sensor:
Output: 1920 x 1080p with 60 fps FULL HD resolution
Provides an optimally defined surgical field of view
Enhances the surgeon’s visual experience, supporting delicate procedures with precision
Ensures accurate color reproduction, allowing for better differentiation of tissue structures
VIST Technology:
VIST Technology is an advanced staining imaging system that enhances visualization during endoscopic procedures by leveraging the variable absorption of hemoglobin at different light wavelengths. It offers both electronic and optical dyeing functions, which significantly enhance the details of mucosal surfaces and blood vessels, ensuring clearer and more precise imaging. This improved clarity aids in the detection of lesions, early-stage cancers, and vascular abnormalities, allowing for more accurate in vivo diagnosis without the need for external dyes. By providing sharper, high-definition views of subtle structures, VIST supports safer, more effective, and minimally invasive surgical procedures, leading to better patient outcomes.

Camera Head
Feature
Details
Sensor
3CMOS FHD image sensor
Buttons
4 customizable buttons
Mount
Universal C-mount
Waterproof Rating
IPX7
Laparoscope Portfolio
Feature
Details
Image Quality
HD
Lens
Scratch-resistant sapphire crystal
Design
Superior sealing for increased durability
Autoclavability
Up to 134℃
Diameter and Viewing Angles
5/10 mm diameter, 0°/30° viewing angles
Medical Grade Monitor
Feature
Details
Display
27-inch surgical display
Resolution
1920 x 1080 full-color HD
Backlight
High brightness LED with stabilization
Viewing Angles
Horizontal: 178°, Vertical: 178°
Sterility Design
IPX5 display panel
Cold Light Source Options
Xenon Light Source:
Brighter, closer to natural light
Realistic and hierarchical image projection
LED Light Source:
High-intensity and consistent illumination
Longer service life than Xenon
Minimizes unit downtime and upkeep expenses
Environmentally friendly (GREEN)
Multi-spectral output improves the detection rate of small lesions
