Optical Coherence Tomograph

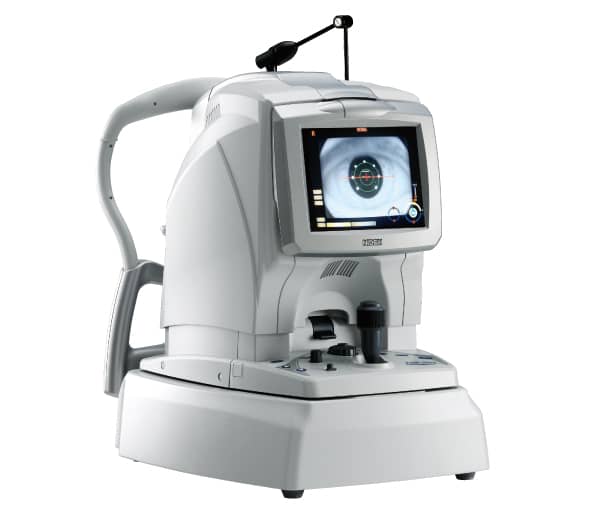

The device shown is a Nidek RS-3000 Advance 2 optical coherence tomograph (OCT). Its key features include:

Comprehensive Retinal and Glaucoma Analysis: It offers a complete solution for analyzing retinal pathologies and glaucoma.

SLO-Based Eye Tracker: A scanning laser ophthalmoscope (SLO)-based eye tracker system enables precise image capture with eye movement compensation.

Selectable OCT Sensitivity: Enables B-scan image acquisition even through opacities in the ocular media.

HD Plus Tracing: This feature ensures accurate averaging of up to 120 images for high-resolution, high-contrast images.

OCT Angiography (OCT-A): High-resolution OCT angiographic imaging capability for observing microvascular details of the retina.

Glaucoma Analysis with Normative Database: Includes glaucoma analysis with an extensive normative database (9 x 9 mm).

High Scanning Speed: The device can reach 85,000 A-scans per second, enabling rapid image acquisition.

Automatic Panoramic Imaging: Automatic panoramic imaging capability for OCT angiography up to 12 x 12 mm.

Vibrant Color LCD Display: Equipped with an 8.4-inch color LCD display for real-time data viewing and review.

Comfortable Working Distance: A 35.5 mm working distance ensures comfortable patient positioning.
