X-RAY machine

Mobile X-RAY machine
Brand: DAWEI
Model:RD-850RS

Description

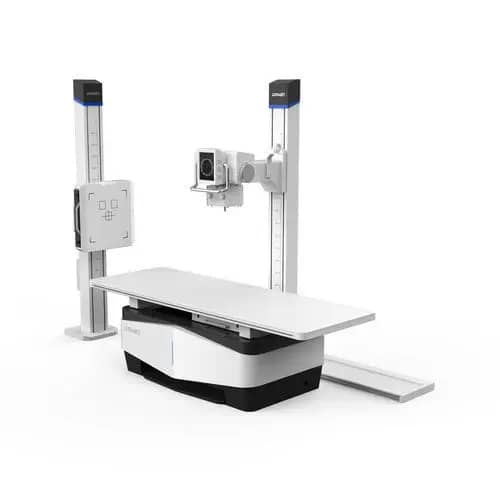

DAWEI Digital Radiography System: RD‑850RS

Overview
* Product Type: Fixed dual‑column digital X‑ray system with table and floor‑mounted bucky.
* Use Case: Designed for routine imaging of head, spine, chest, abdomen, limbs, and full-body exams, including decubitus and cross-table views.

Design & Workflow Enhancements
* Features a robust dual‑column stand with motorized movement of both tube and detector, supporting flexible positioning for sitting, standing, or lying patients. Improves workflow and reduces operator fatigue.
* Includes a radiography table with under-table bucky and optional vertical detector positioning for various clinical needs.

Core Specifications
* X‑ray Generator: 50 kW high-frequency (40–125 kV, 10–630 mA); exposure time 1–6300 ms; supports AEC, kV‑mA, and kV‑mAs modes.
* X‑ray Tube: Dual focus (0.6 mm / 1.2 mm); ~300 kHu anode heat capacity.
* Detector: 17″ × 17″ CsI TFT; 3072 × 3072 resolution, 139 µm pixels, 16-bit ADC,
